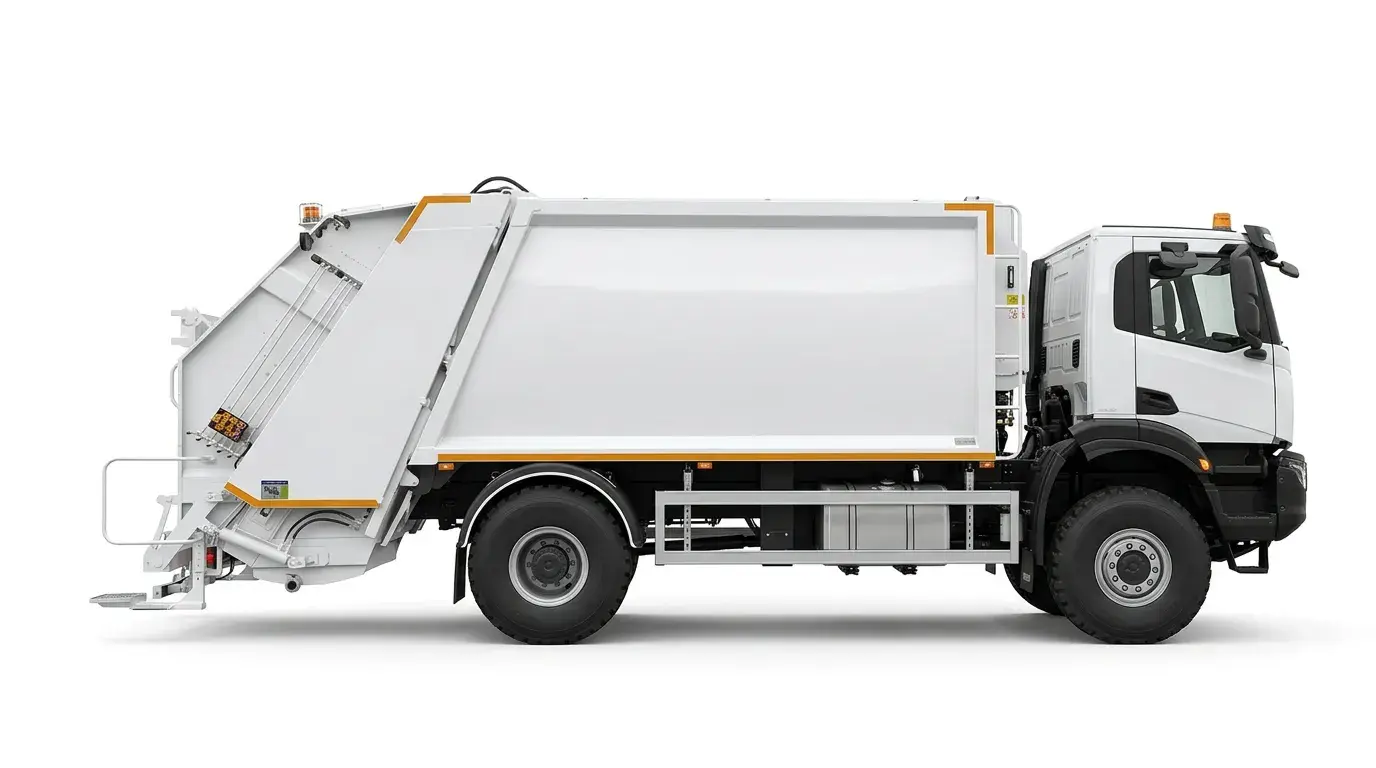

Our Garbage Compactor is a high-performance waste collection solution designed for municipal and industrial solid waste operations. Engineered for durability, efficiency, and compatibility with a wide range of truck chassis, the system offers reliable compaction performance and long service life under demanding working conditions.

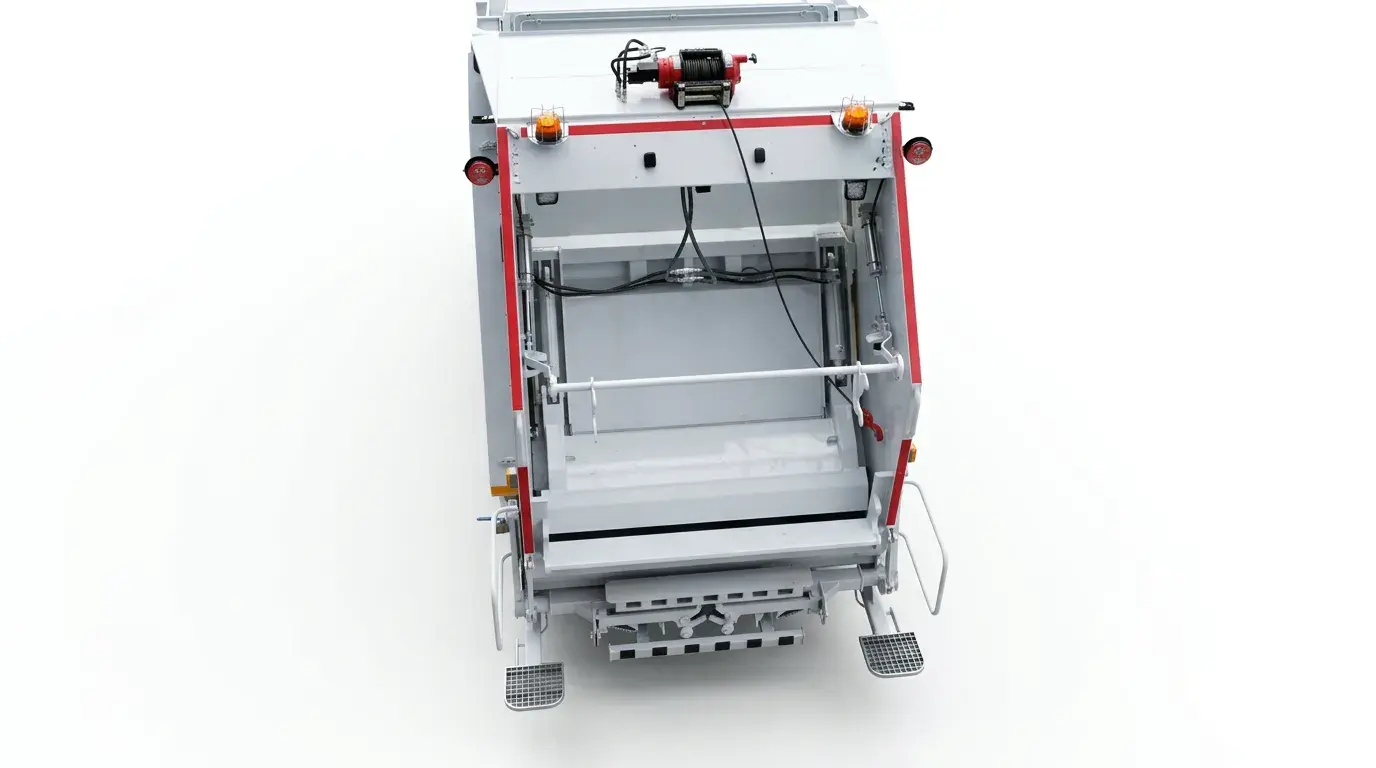

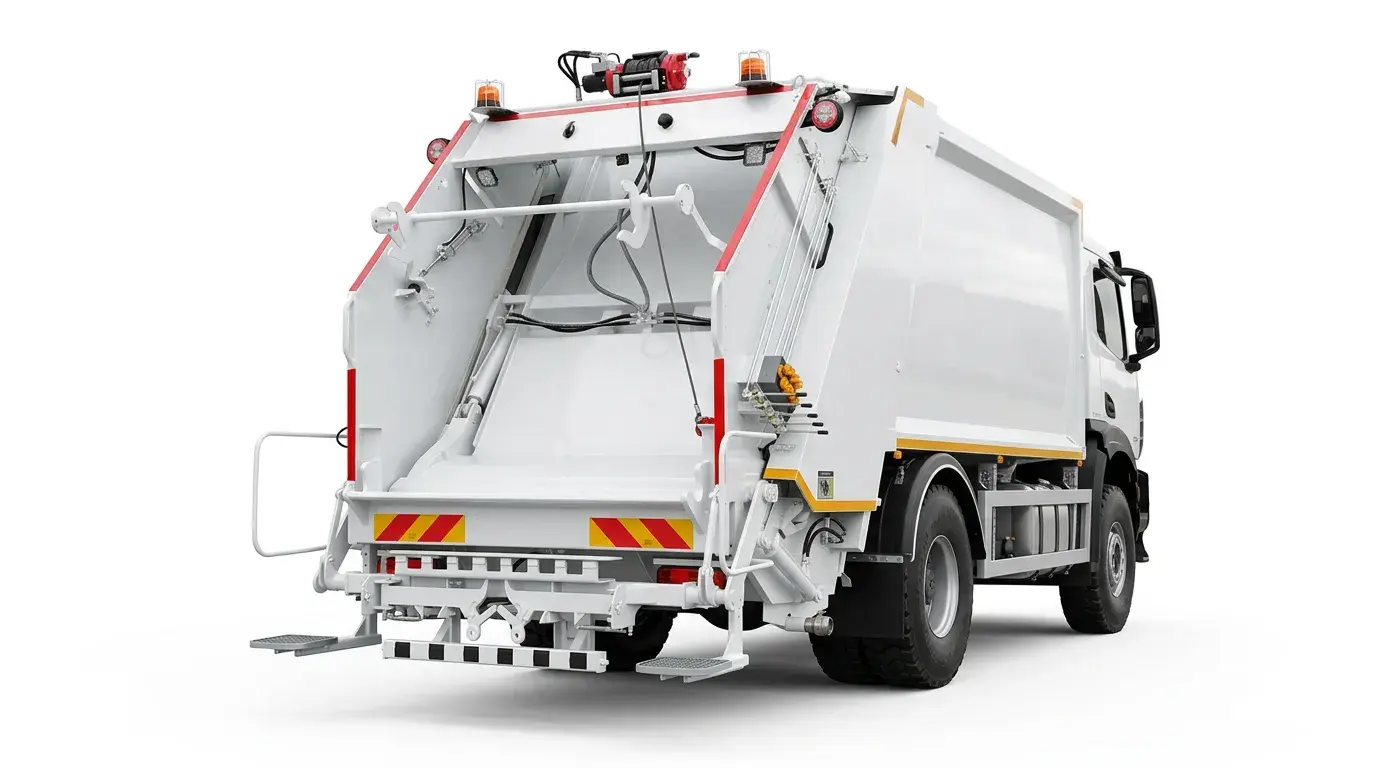

With body volume options ranging from 6 m³ to 32 m³ and a rear hopper capacity of 0.8 – 2 m³, the compactor provides flexible configurations suitable for small urban routes to large-scale city operations. The reinforced body structure is manufactured from 3–5 mm ST-52 (S355J2) high-strength steel, ensuring resistance to heavy loads and long-term wear.

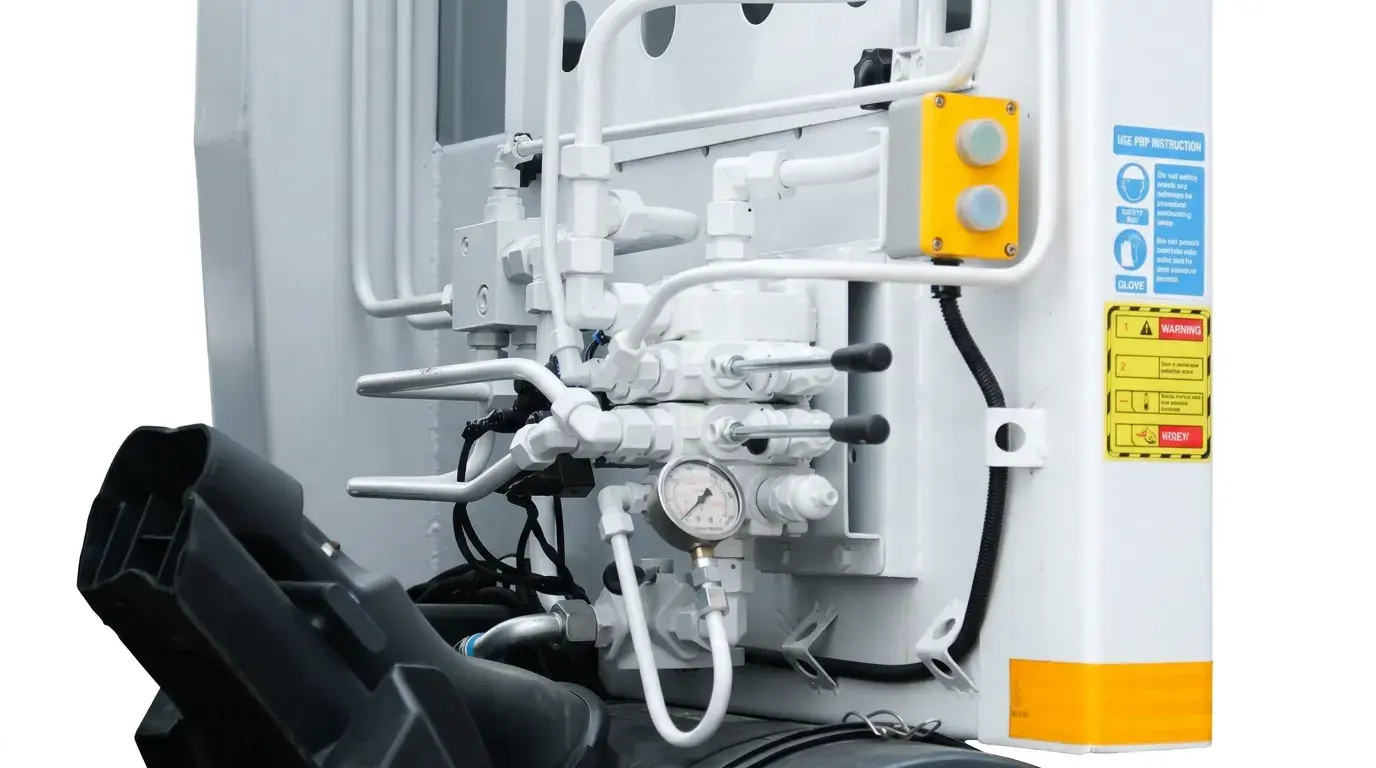

The unit delivers an efficient 5:1 to 6:1 compression ratio, maximizing payload capacity and reducing transportation frequency. A robust hydraulic system operating at 170–190 bar ensures smooth, powerful, and fast cycle times between 20–35 seconds. The system can be operated in automatic, manual, or semi-automatic modes, providing operational flexibility and user control.
The compactor is compatible with 120L and 240L plastic bins, as well as 0.4 m³, 0.8 m³, and 1.1 m³ containers, compliant with DIN 30700 – EN 840 standards. Optional lifting systems such as arm lifters and hydraulic winch systems are available for larger containers (3–8 m³).
General Specifications
| General Technical Specifications | |
|---|---|
| Specification | Details |
| Body Volume Range | 6 – 32 m³ |
| Rear Hopper Volume | 0.8 – 2 m³ |
| Base Plate Thickness | 3 – 5 mm ST-52 (S355J2) or equivalent |
| Side Wall Thickness | 3 – 5 mm ST-52 (S355J2) or equivalent |
| Auxiliary Chassis | 5 – 8 mm Reinforced U-Profile |
| Loading Height | 1,000 – 1,400 mm |
| Waste Water Tank | 80 – 150 liters (Optional) |
| Paint System | Primer + Synthetic Top Coat |
| Compression Ratio | 5:1 / 6:1 (for domestic waste) |
| Hydraulic System Specifications | |
|---|---|
| Specification | Details |
| ▪ Hydraulic Pump | 36 – 90 cm³/rev |
| ▪ Maximum Pump Speed | Up to 1,500 rpm |
| ▪ Working Pressure | 170 – 190 bar |
| ▪ Oil Tank Capacity | 80 – 240 liters |
| ▪ PTO Speed | 750 – 1,500 rpm |
| ▪ Cycle Time | 20 – 35 seconds |
| ▪ Control System | Automatic / Manual / Semi-Automatic |
| ▪ Number of Hydraulic Cylinders | 9 pieces (varies depending on lifting system) |
| Container Lifting Systems | |
|---|---|
| Feature | Specification |
| Compatible Plastic Bins | 120 L / 240 L |
| Compatible Metal Containers | 0.4 m³ / 0.8 m³ / 1.1 m³ |
| Standard Compliance | DIN 30700 – EN 840 |
| Standard Lifting Mechanism | 3 Container Attachment Options (according to DIN 30700 – EN 840) |
| Arm Lifter System | Optional – For 3–8 m³ Containers |

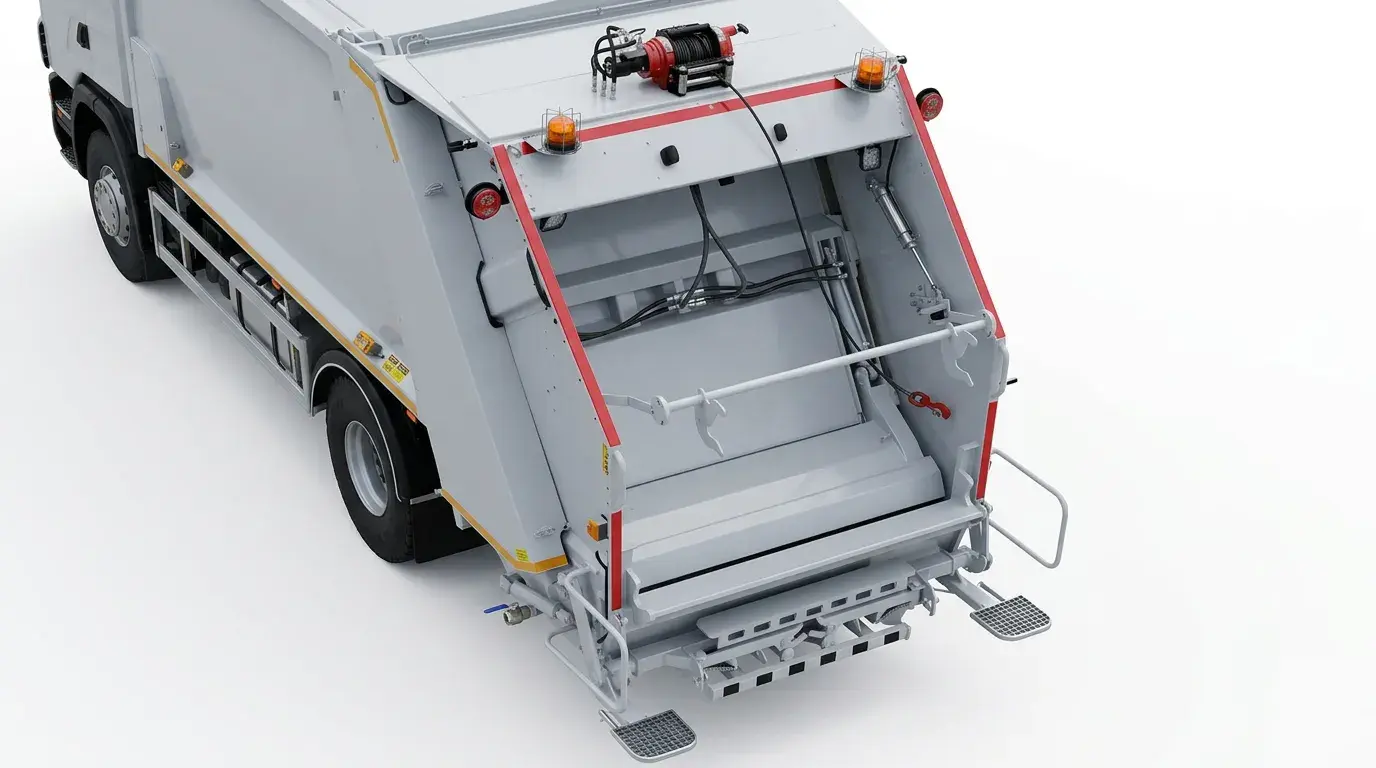

| Hydraulic Motor – Winch System | Optional – For 3–8 m³ Containers |
