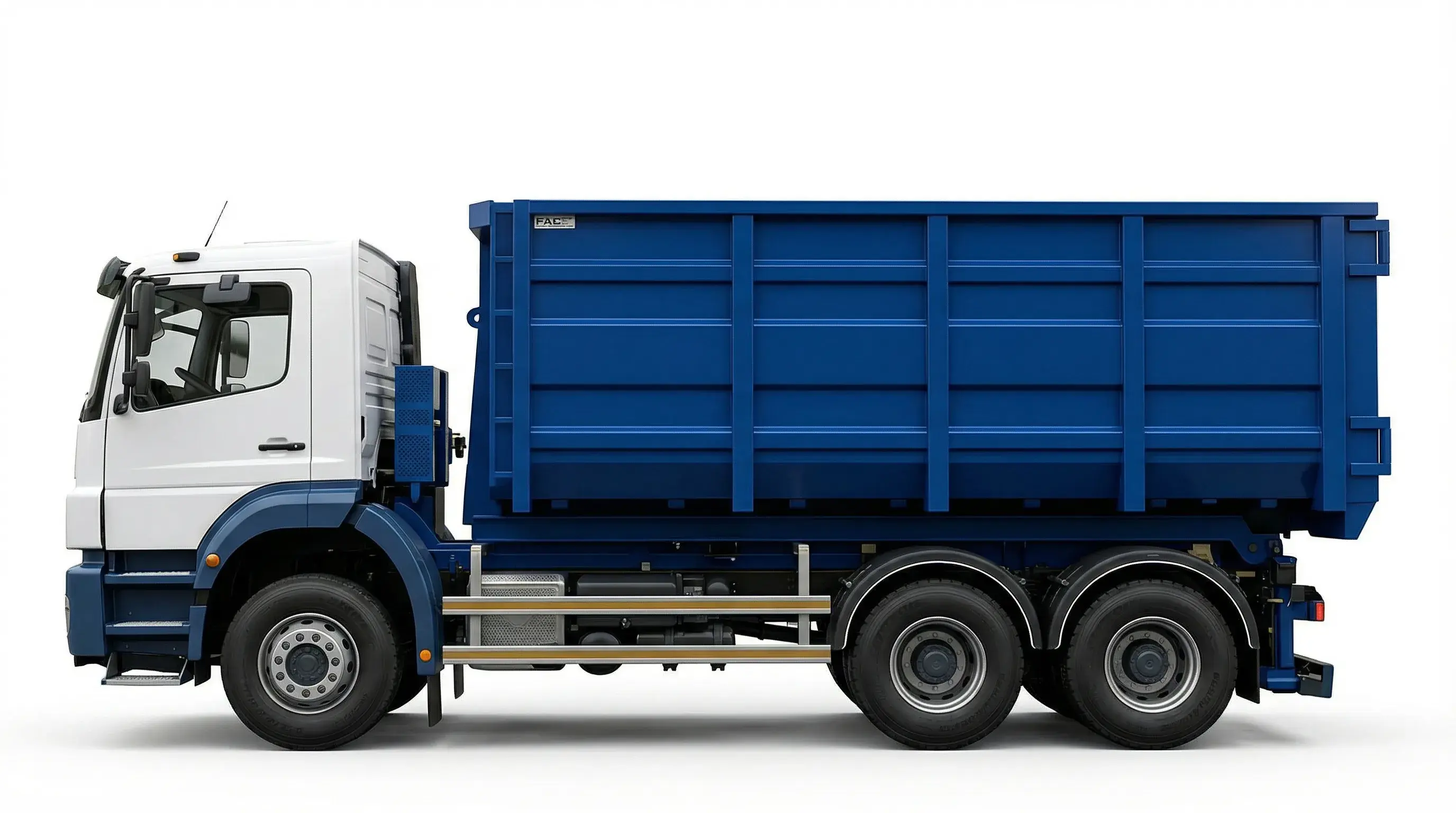

Truck-Mounted Hook Loader

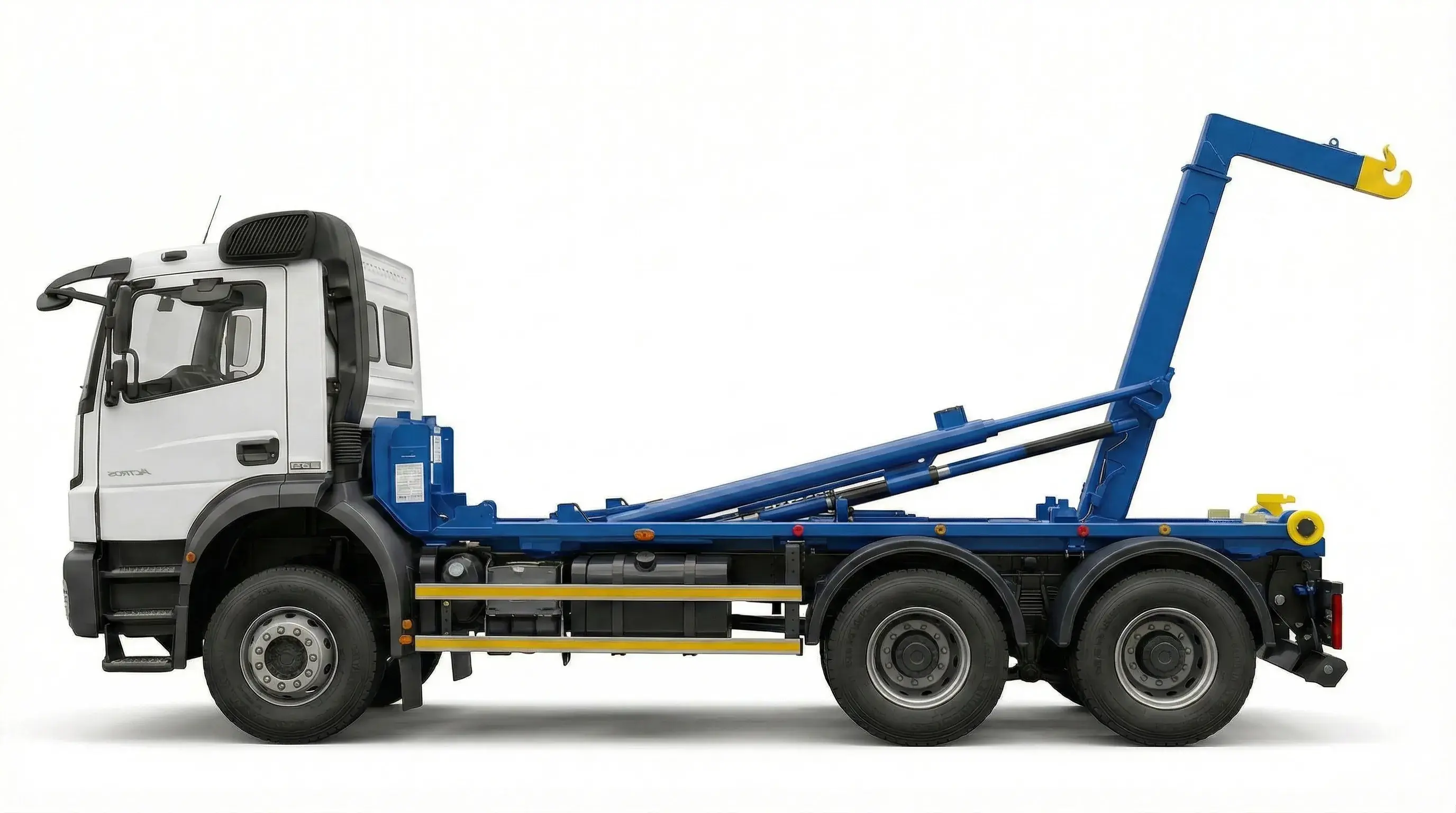

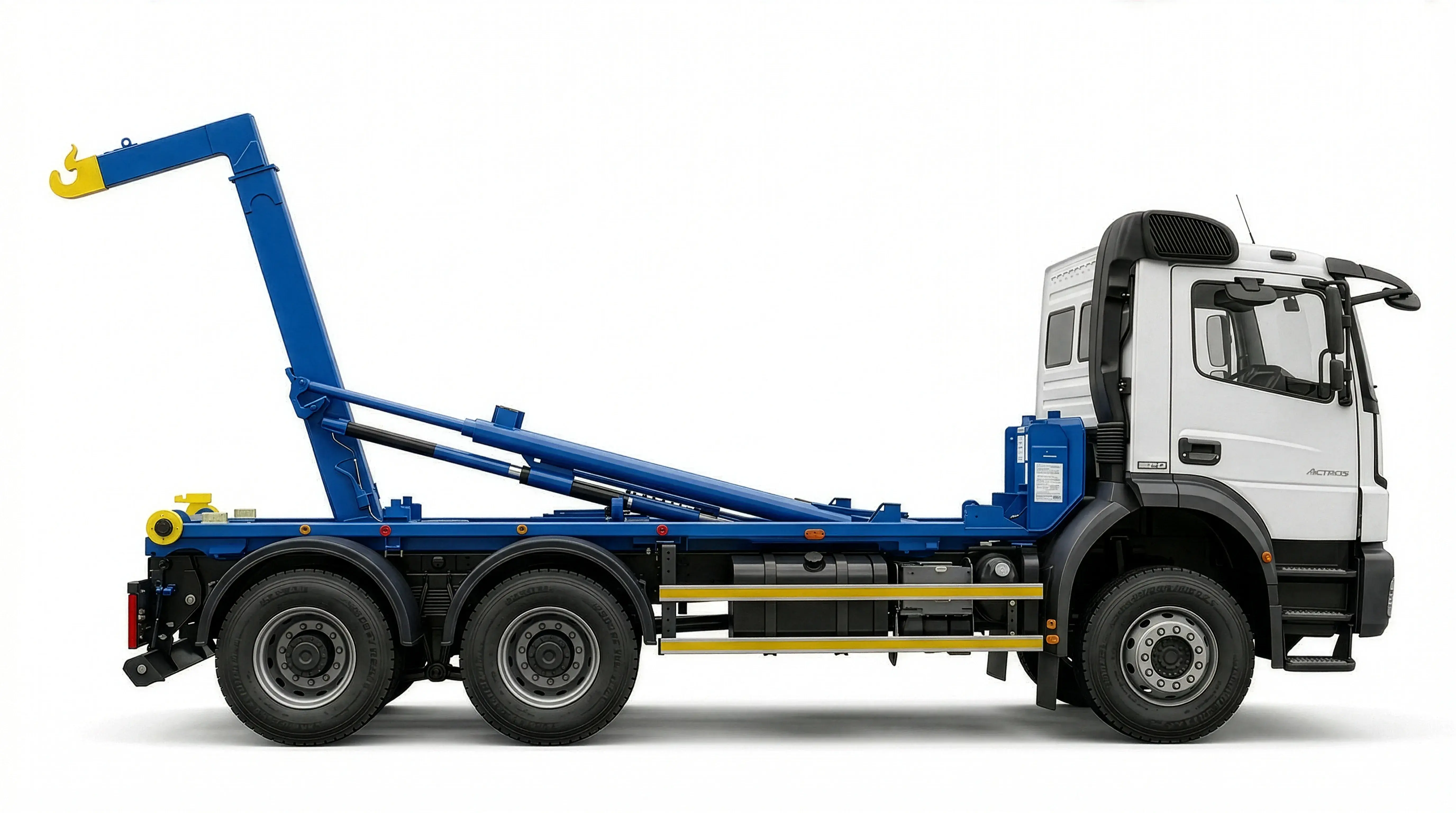

Truck-mounted hook loaders are versatile heavy-duty machines widely used in the construction, waste management, and transportation sectors. Designed to lift, transport, and discharge heavy materials, these loaders are equipped with a robust hydraulic hook-lift system mounted on the rear of the truck chassis.
The primary purpose of a hook loader is to lift containers, skips, or heavy loads securely onto the vehicle for safe transport. Hook loaders offer capacities ranging from 8 tons to 25 tons, making them suitable for both industrial and large-scale construction applications.
Key Features
- Versatility: Capable of handling a variety of loads including construction debris, waste materials, and shipping containers.
- Hydraulic Arm System: Operated directly by the driver, the hydraulic arm picks up, transports, and unloads containers efficiently.
- Angular Overturning: Enables smooth discharge of container loads.
- DIN 30722 Compliance: Designed according to international norms for subframes, foldable lifting arms, and hydraulic-pneumatic systems.
- Durable Construction: Built to withstand heavy-duty operations with reliable hydraulic components.
- Safety Features: Equipped with load sensors, hydraulic lock hooks, and other mechanisms to prevent accidents.
- Ease of Use: Fully operable from the truck cab with quick container loading and unloading cycles.
| General Specifications | |
|---|---|
| Feature | Description |
| Load Capacity | 8 – 25 tons |
| Operation Type | Hydraulic hook-lift |
| Compliance | DIN 30722 norms |
| Primary Function | Container lifting, transporting, and unloading |
| Application | Construction, industrial, waste management, transportation |
| Safety Features | Load sensors, hydraulic hook locks, angular overturning system |
| Chassis Compatibility | Designed for heavy-duty truck chassis |
| Durability | Robust hydraulic system for reliable performance |
Main Components
- Hook & Hook Lock – Secures containers during lifting and transport.
- Hydraulic Arm – Controlled by the driver for extending and retracting to pick up loads.
- Cylinder Front & Rear Bushings – Support hydraulic movement with minimal wear.
- Hydraulic Lock Hook – Ensures safety by locking the hook in place.
- Container Beds & Loading Reels – Stable platform for holding containers during transit.
- Outer & Inner Boom Pins – Structural components that provide strength and flexibility.
