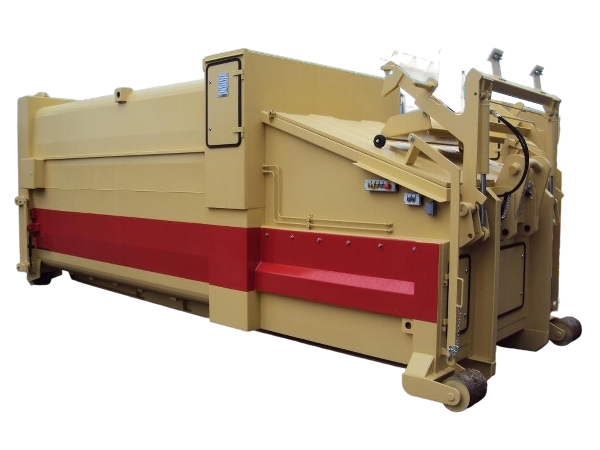

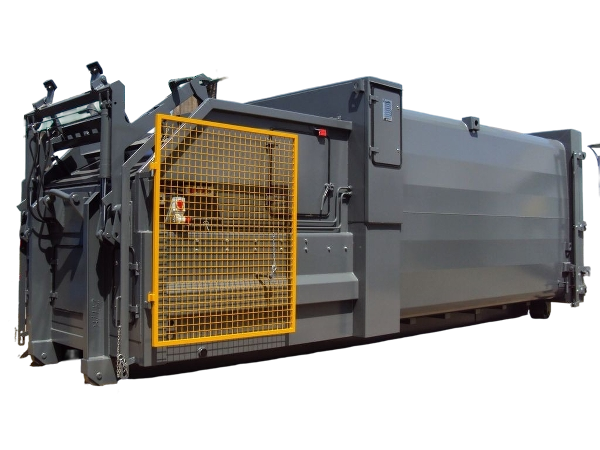

Mobile Press Containers & Static Compactors

ENVIRONMENT PRO offers special compactors for the reliable compaction of wet waste materials. Mobile press containers and static compactors are an irreplaceable tool solution for wet waste materials such as arising in hotels, canteen-kitchens, rest homes, or hospitals.

Due to the efficient PRO 4-point locking, your compactor is absolutely liquid-tight. The self-cleaning press ram and the tub-shaped design of the press head ensure low-maintenance operation.

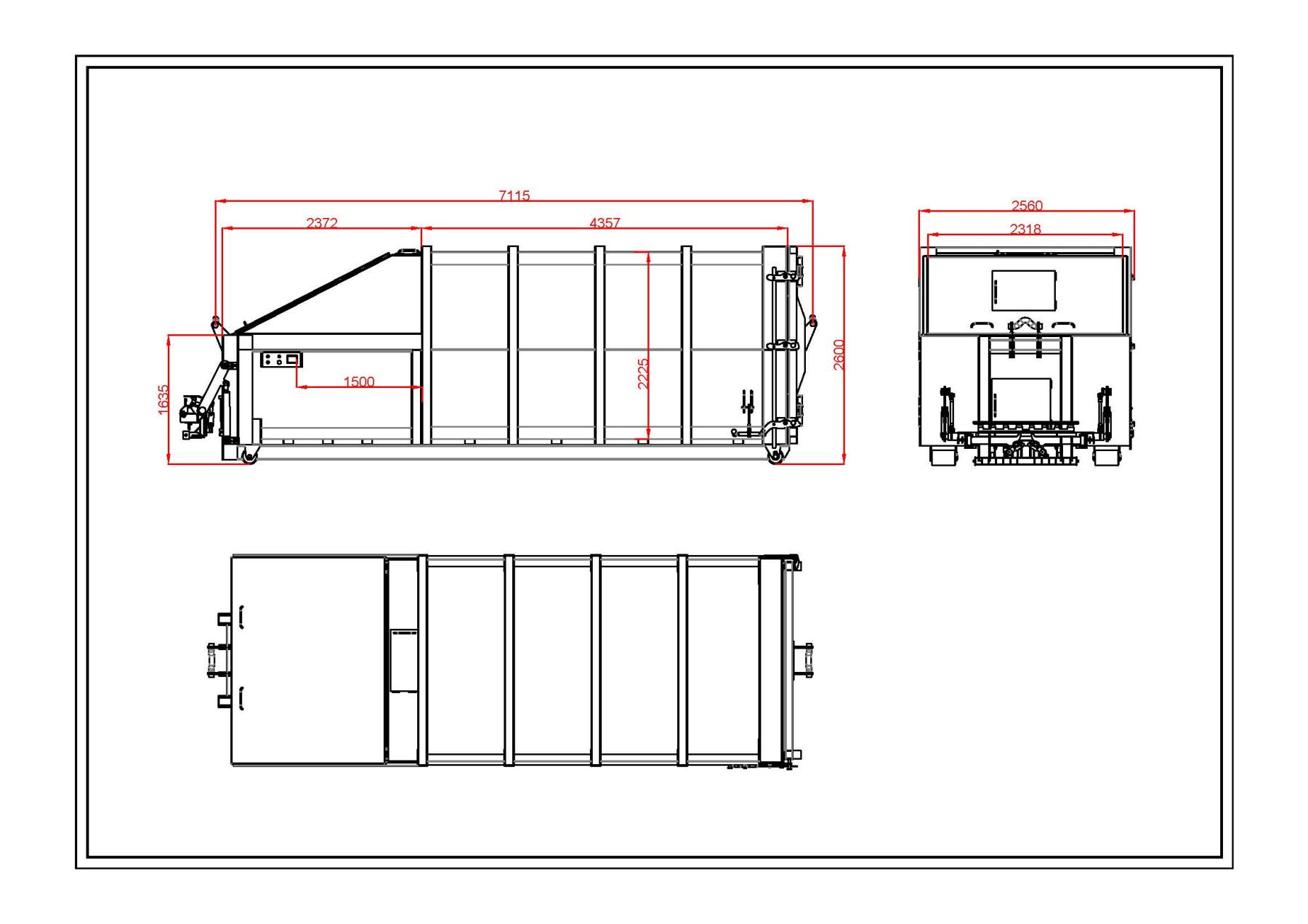

Technical Data

Feature	PRO 10 P/E/N/B	PRO 16 P/E/N/B	PRO 20 P/E/N/B
Net Capacity	10 m³	16 m³	20 m³
Machine Length (mm)	4,550	5,490	6,330
Machine Width (mm)	2,040	2,500	2,500
Machine Height (mm)	2,510	2,550	2,550
Feed-opening (L x W)	1320 x 1430 mm	1320 x 1430 mm	1320 x 1430 mm
Feeding Height (mm)	1,420	1,490	1,490
Dead Weight (kg)	3,100	3,900	4,100
Capacity per stroke (m³)	0.5	0.5	0.5
Cycle time (s)	22	22	22
Transport System	Chain lift	Hook lift	Hook lift
Drive / Press Force	5.5 kW / 200 kN	5.5 kW / 200 kN	5.5 kW / 200 kN

Options

Configure Your System for Optimal Setup

Feed opening with protective cover
Integrated ozone generator
Rear access door with full perimeter sealing
4-point locking system (optional extended locking ratchet available)
Web-based monitoring system for location and fill-level tracking
C-pipe connection interfaces

Advantages

Hygienic: Liquid-tight design ensures clean and safe disposal
Durable: Heavy-duty construction for a long service life
Reliable: 24 V safety system with digital control technology
Service-Friendly: Large maintenance door for easy access

Electrical Specifications: 3 × 400 V, N, PE / 50 Hz; Plug connector: CEE 5 × 32 A / 6 h; On-site fuse protection: 25 A (slow-blow) and Control voltage: 24 V DC
