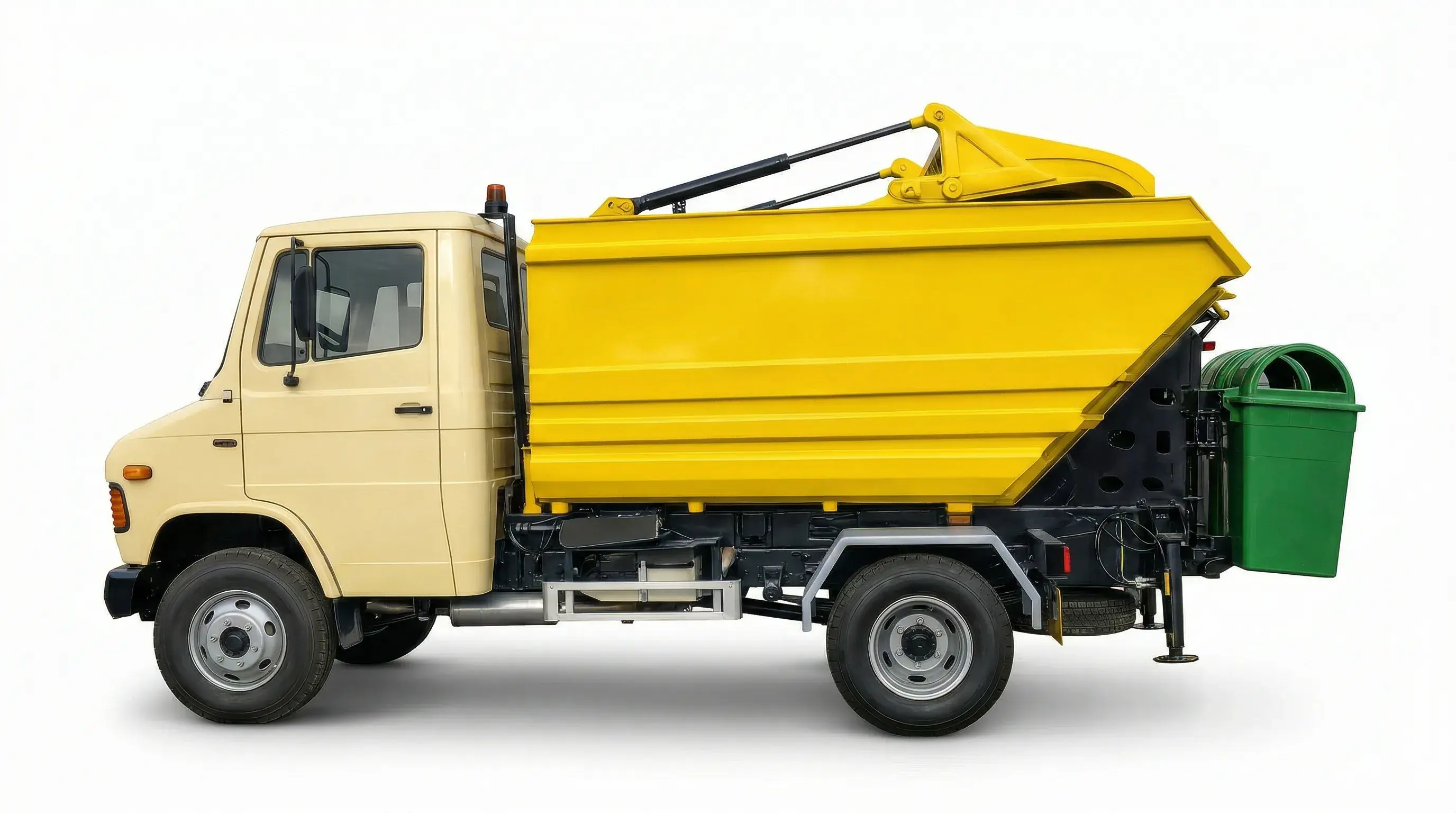

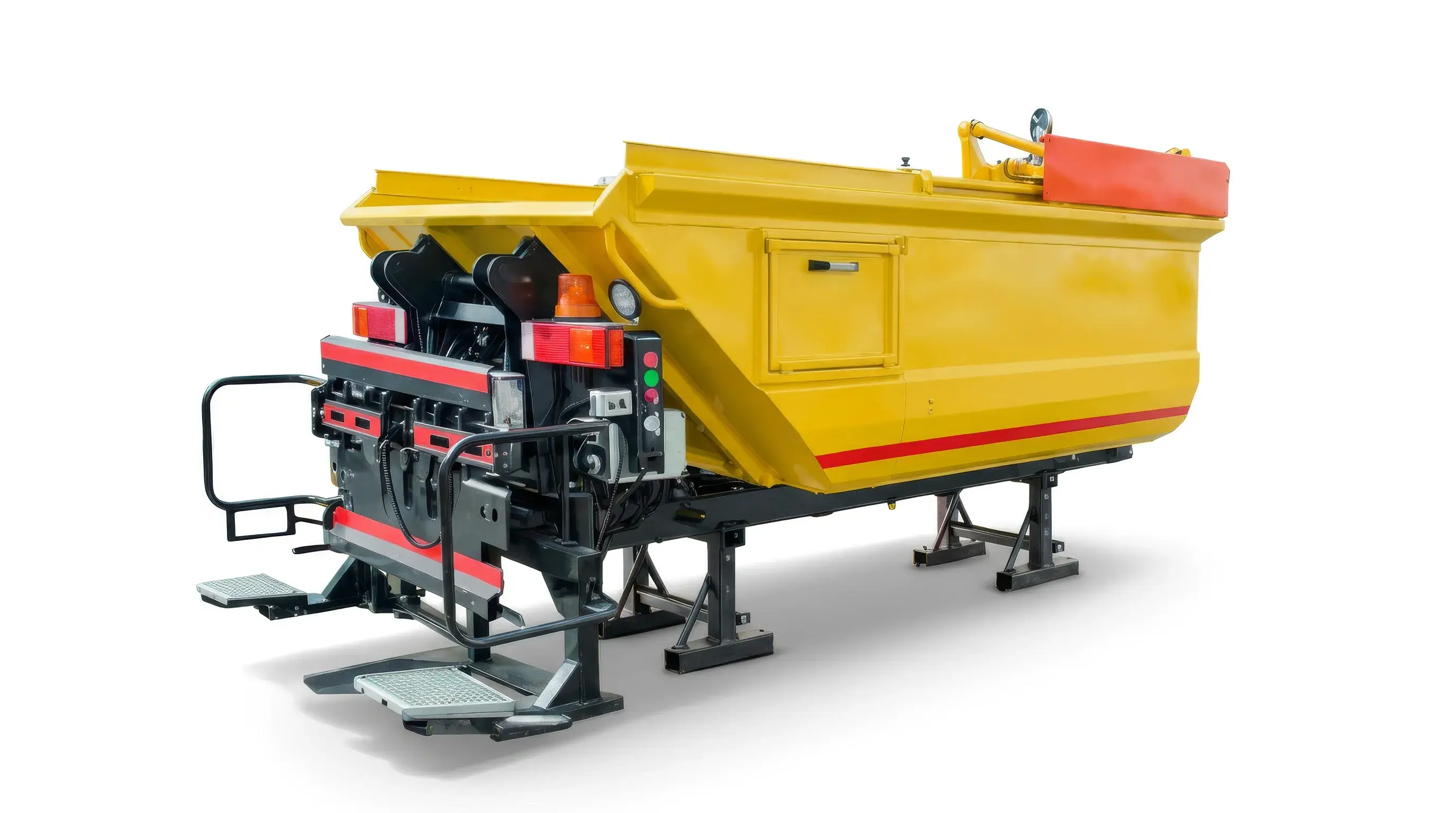

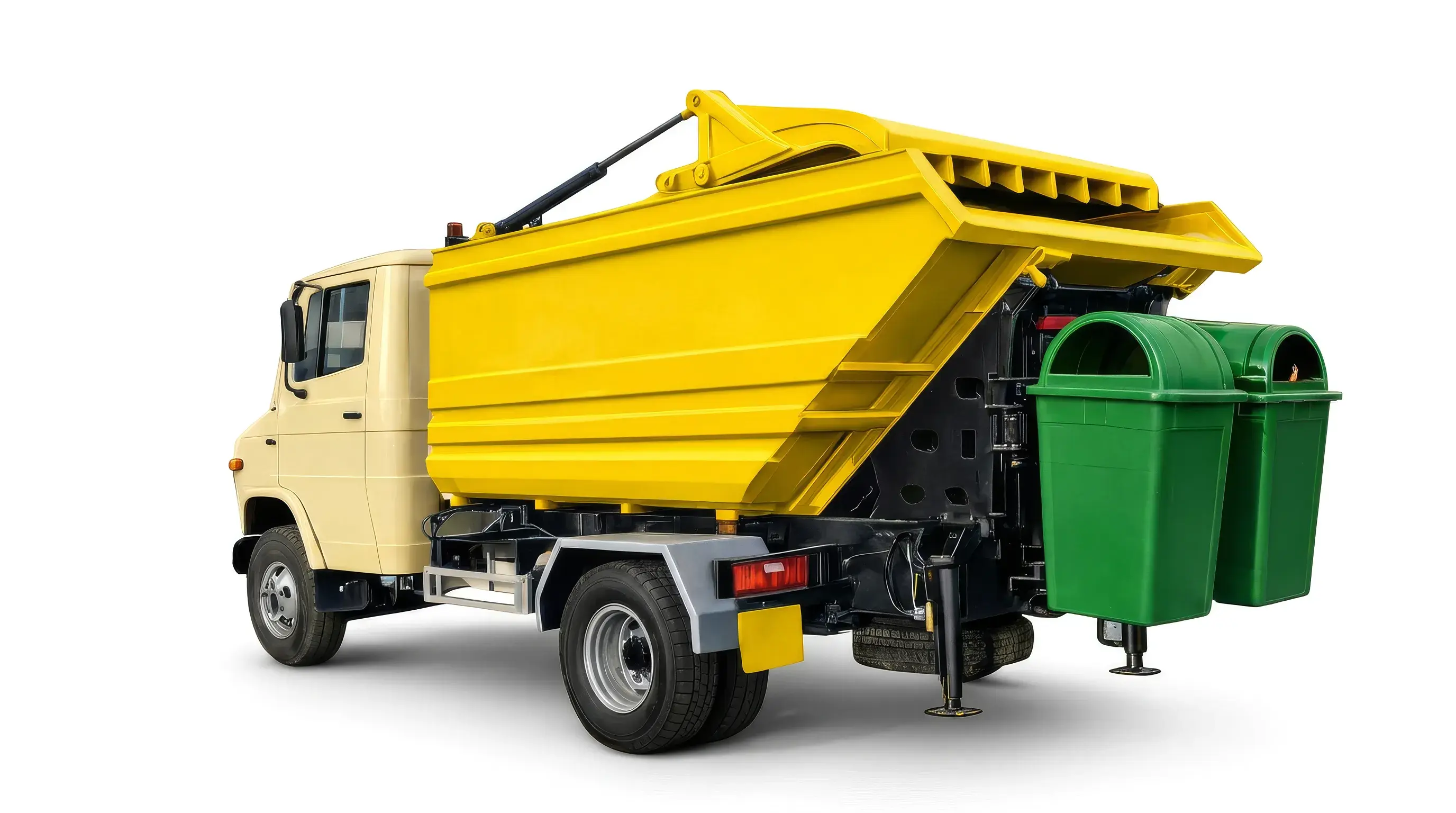

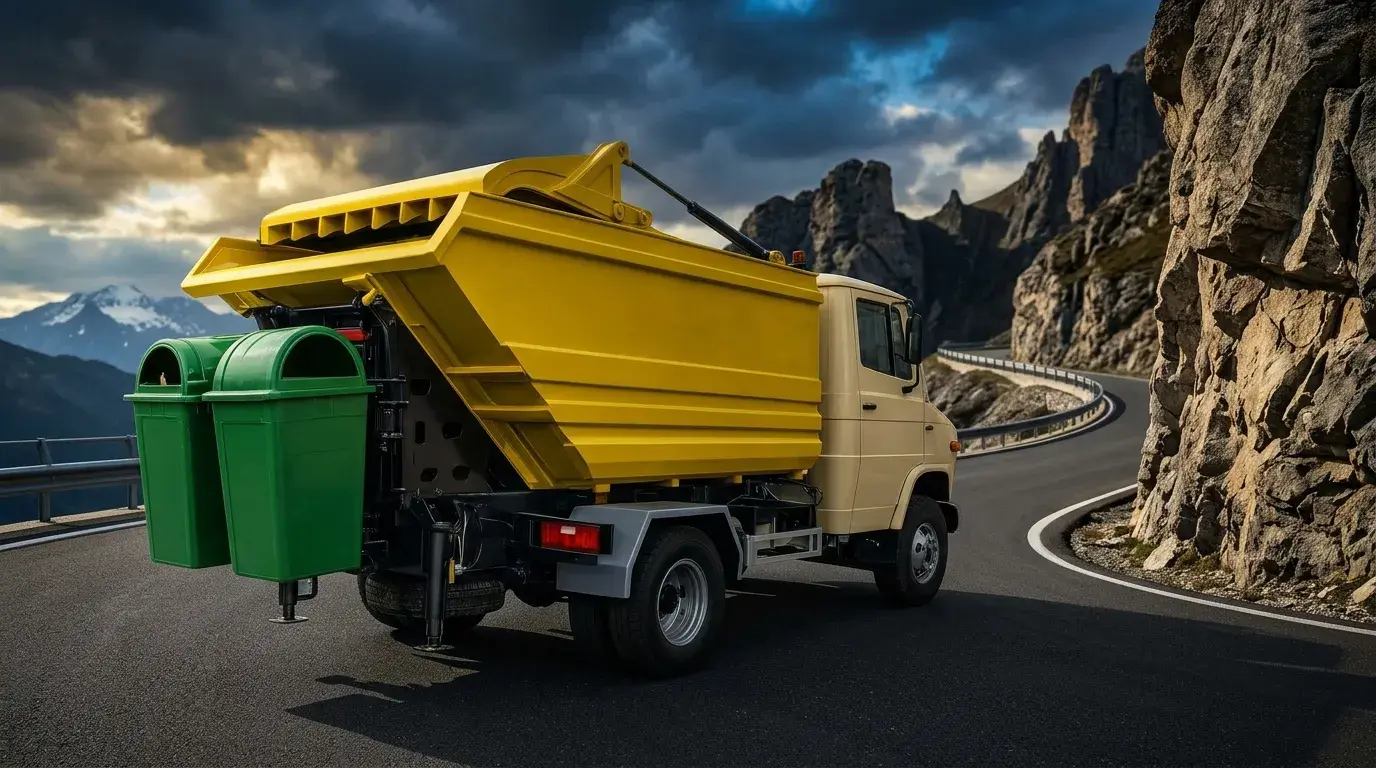

Mini Packer Refuse Compactor is a highly efficient and practical waste collection solution designed specifically for narrow streets, city centers, residential districts, and rural areas.
Mounted on a 4x2 truck chassis, this compact yet powerful unit is ideal for areas where larger refuse trucks cannot operate effectively.
The Mini Packer collects and compacts street waste, then:
- Transfers waste to a larger refuse compactor truck, or
- Transports waste directly to the nearest disposal or transfer facility
Built according to international standards, Mini Refuse Compactors are durable, reliable, and engineered to perform across various terrains and operating conditions.
Technical Specifications
| General Technical Specifications | |
|---|---|
| Specification | Details |
| Body Capacity | 6 Cubic Meters (6 CBM) |
| Compaction Ratio | 3:1 |
| Body Wall Thickness | 2.5 mm (St 37 Steel) |
| Floor Thickness | 4 mm (St 37 Steel) |
| Floor Reinforcement | U-profiles at sides |
| Shovel Compaction System | via two double-acting hydraulic cylinders |
| Side Protections | Installed on both sides |
| Control Panels | Rear and right side |
The hydraulic installation is engineered for high efficiency and long-term durability.
- PTO-driven hydraulic pump
- Hydraulic oil tank with:
- Oil level gauge
- Temperature gauge
- Filters
- Operating pressure: 170 Bar
- Oil tank capacity: 60 Liters
- Manual button controls & automatic cycle operation
The Mini Packer is delivered with:
- Beacon lamp
- Projector for night operation
- Reflective safety stripes
- Left and right side guards
- Operation & maintenance manual
- Spare parts manual
The lifting system is manufactured in accordance with:
EN 1501-1:2015 European Standard
This ensures safe and reliable container handling compatible with standardized waste bins.
