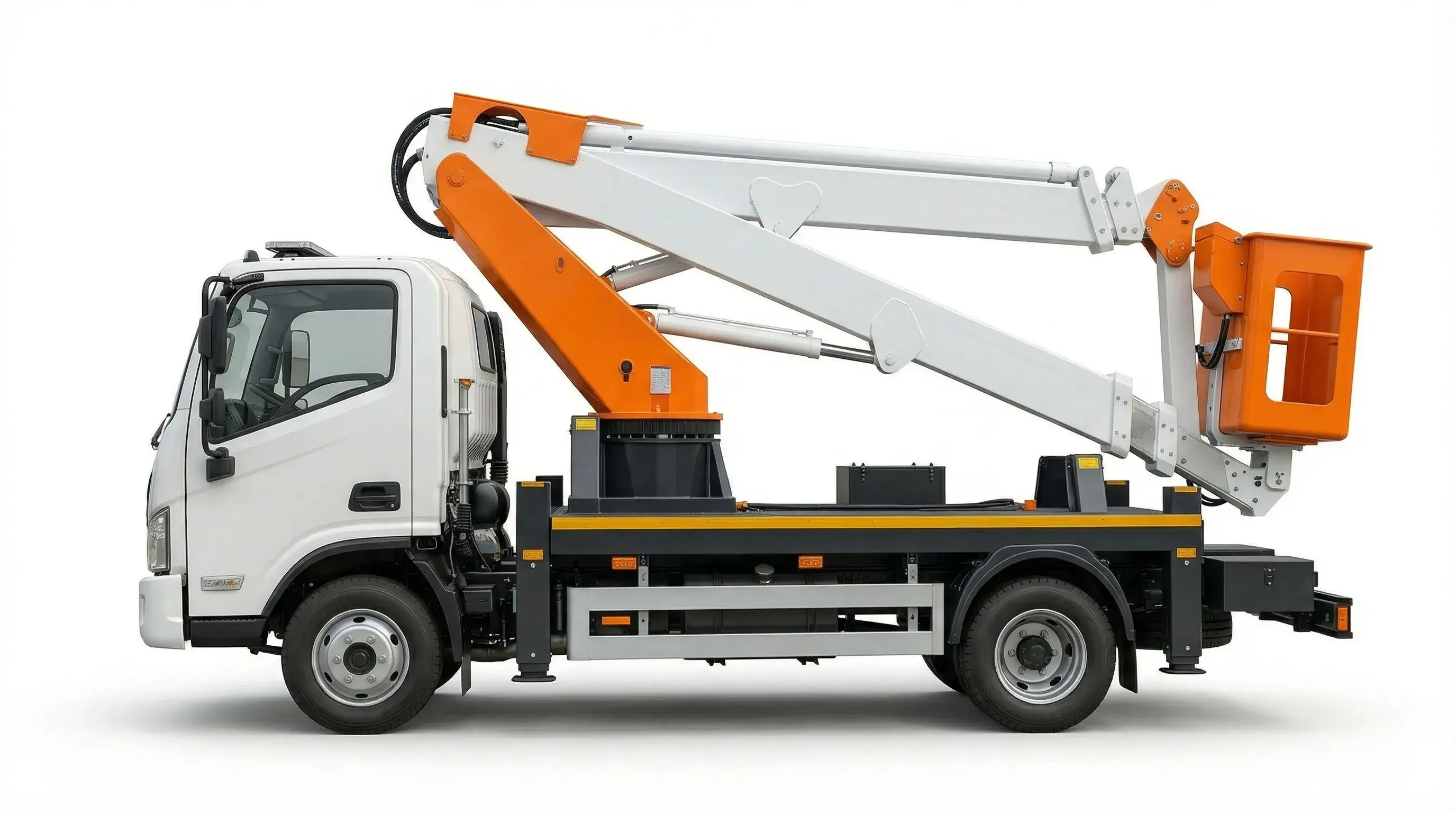

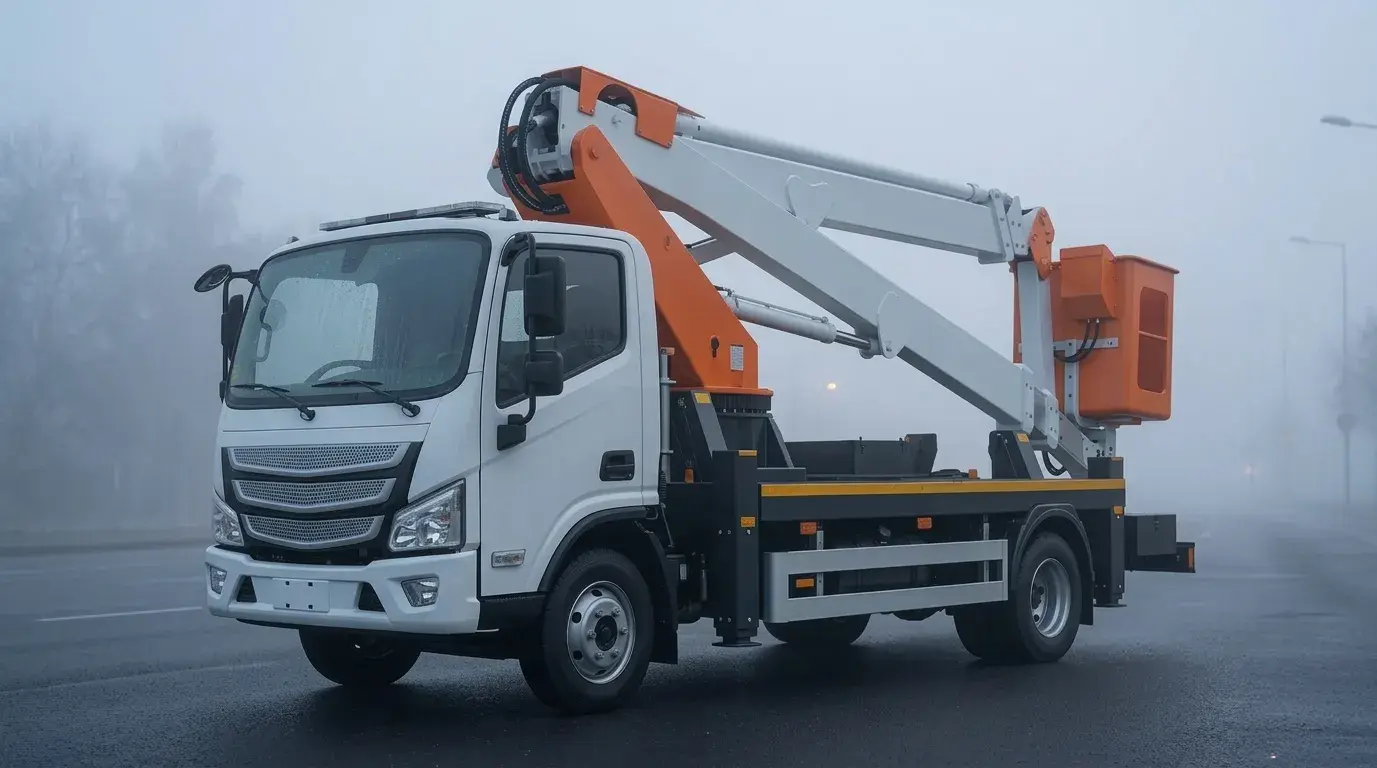

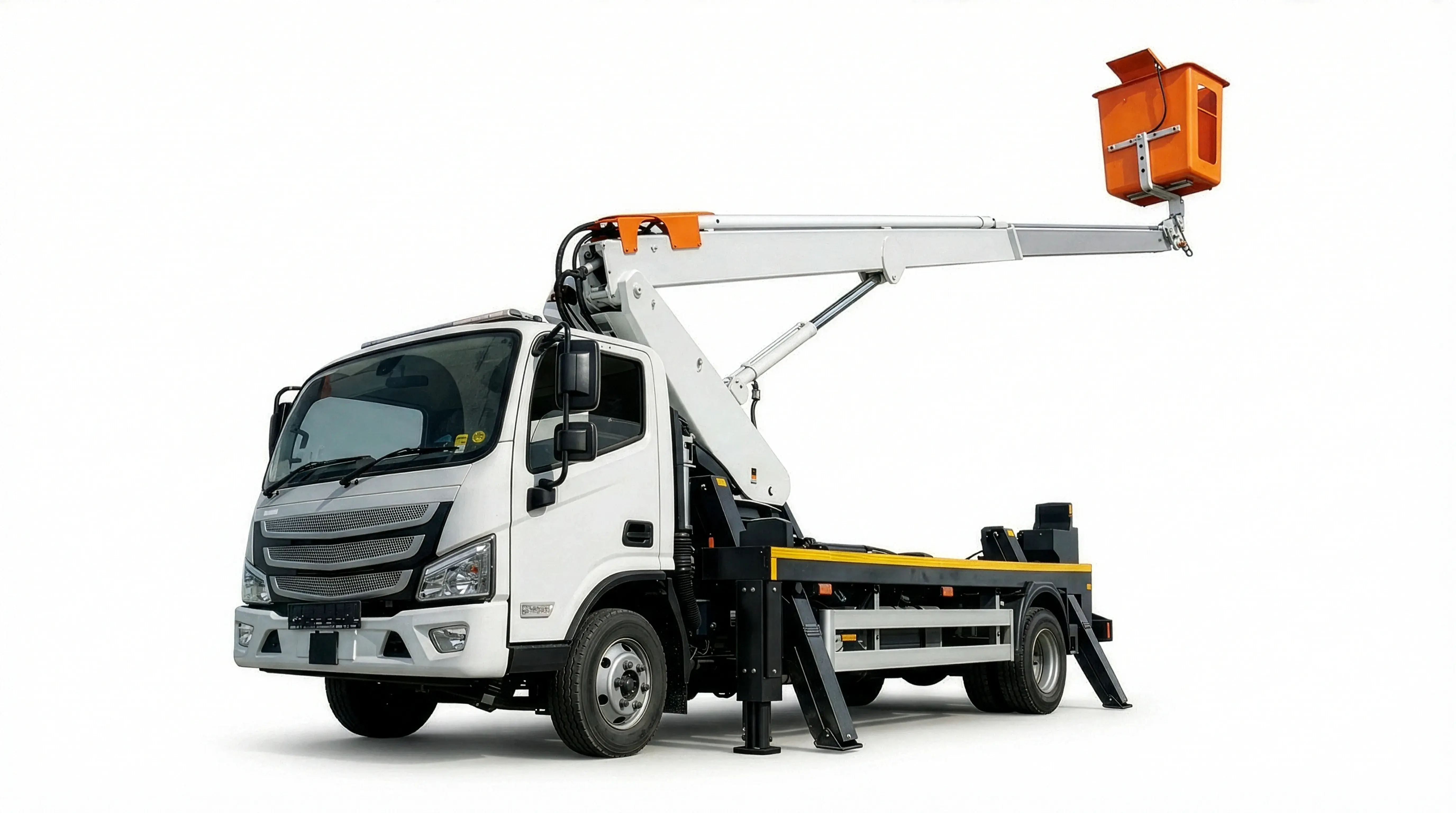

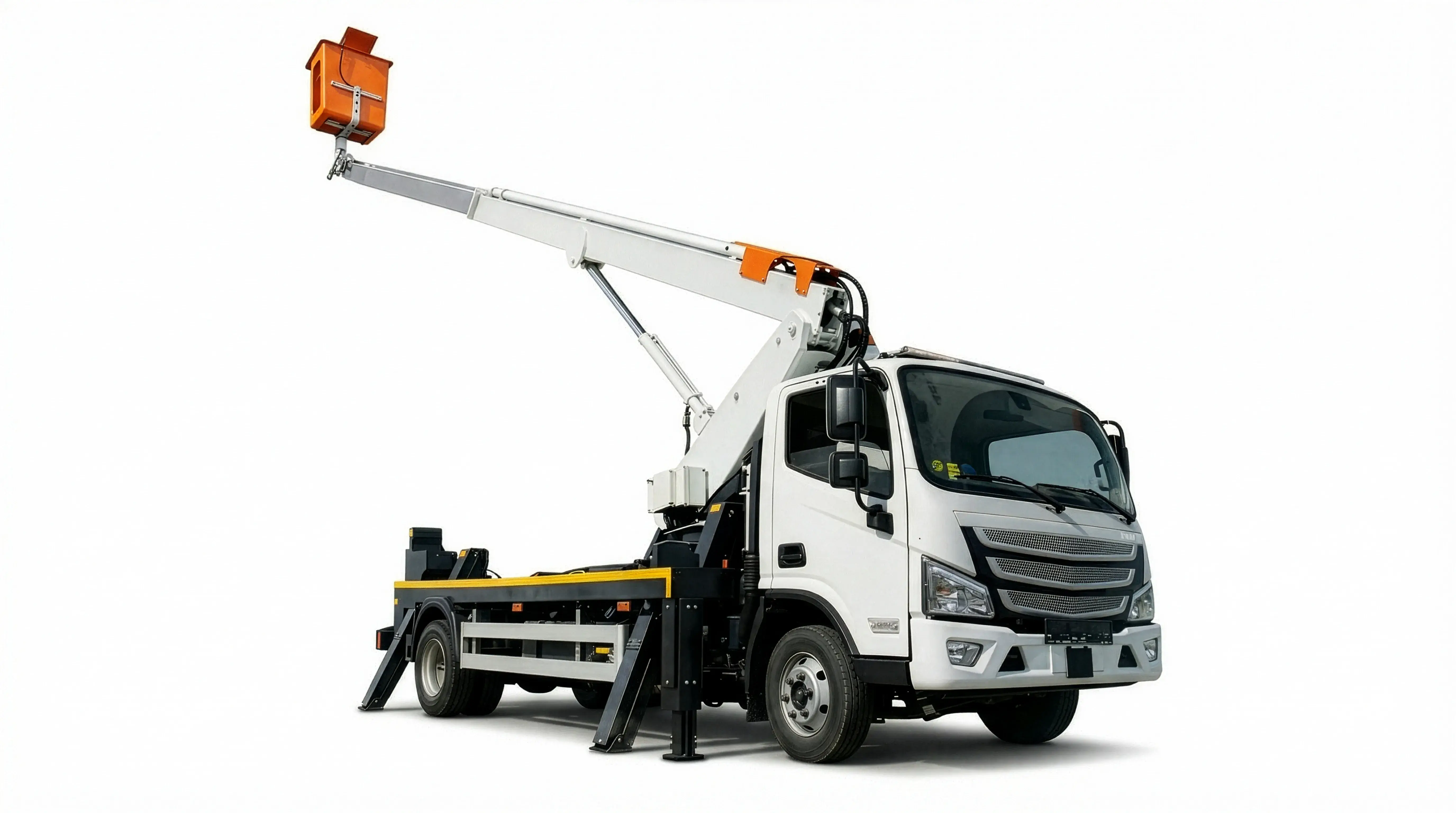

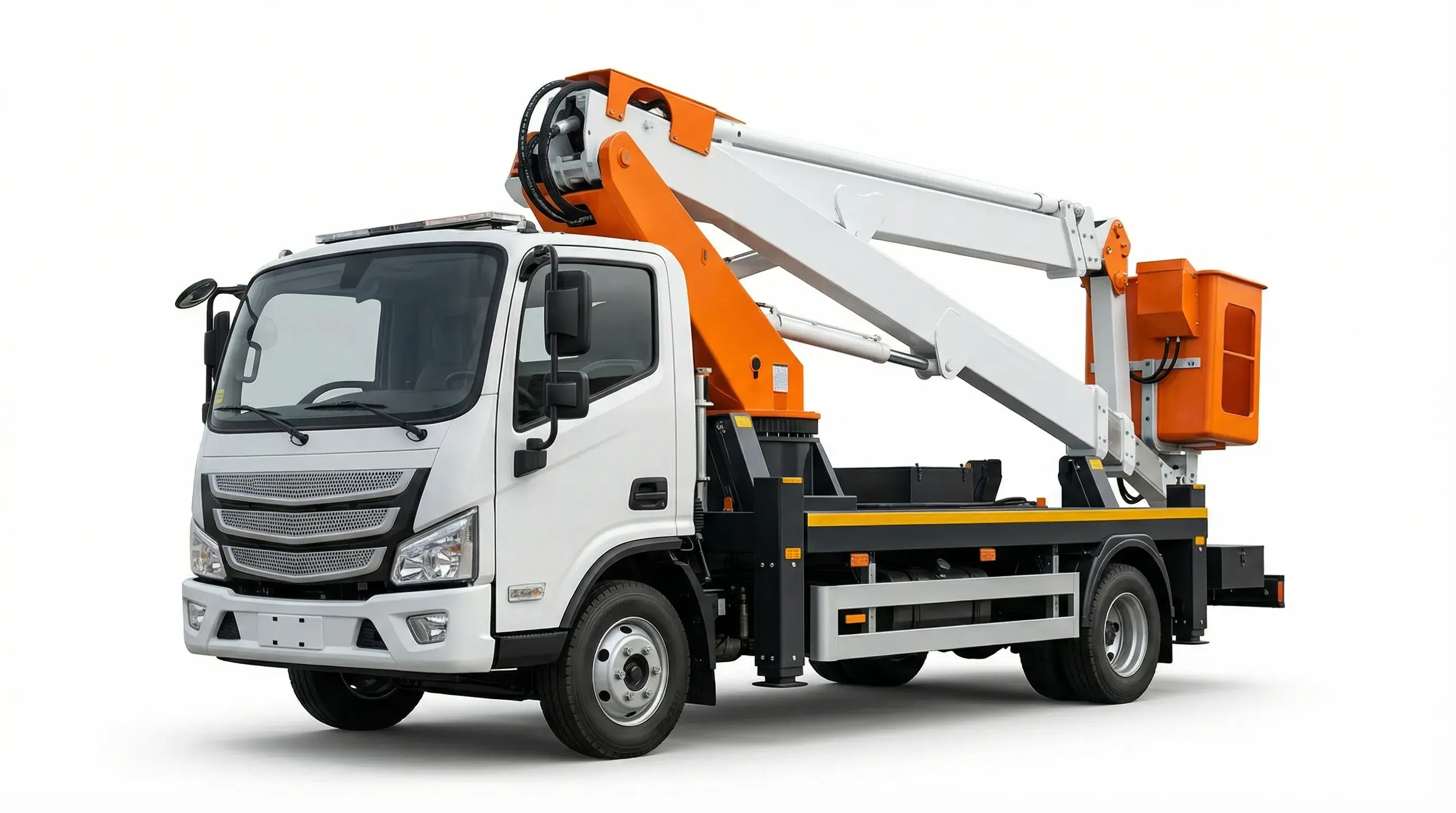

Truck-Mounted Articulated Aerial Platform
Truck-Mounted Articulated Aerial Platforms are specialized lifting vehicles designed to provide safe, efficient, and environmentally friendly access to elevated work areas. They are ideal for construction, maintenance, and installation tasks such as roofing, chimneys, antennas, bridge work, and electric tower maintenance.
Key Features:
- Versatility: Heights up to 30 meters (with options up to 65 meters using specialized cranes). Extendable booms allow precise positioning.
- Mobility: Mounted on light and medium trucks for easy transport between sites.
- Safety: Advanced hydraulic and control systems allow operation from the ground or basket. Overpressure and safety valves prevent accidents.
- Environmental Benefits: Reduced fuel consumption and emissions; some models equipped with low-emission engines.
Technical Specification
| Feature | Specification |
|---|---|
| Platform Working Height | 14 – 20 m |
| Platform Height | 12 – 18 m |
| Tower Rotation | 360° (±180°) |
| Working Radius Min | 9 m |
| Basket Capacity | 200 – 250 kg |
| Basket Dimensions | 750 x 1000 x 1100 mm |
| Boom Configuration | 2 fixed + 1 telescopic movable |
| Load Test | 250 kg |
| Material | High-strength St 52.3 steel |
Main Components
Chassis
- High-strength frame to support booms.
- Detachable from vehicle chassis.
- Reinforced mounting points for stability.
Tower
- 360° rotation via gear and hydro-motor system.
- Hydraulic control valves mounted on tower for safety.
- Protected control panel and concealed hydraulic hoses.
Basket
- Fiberglass basket designed for two personnel.
- Easy access and secured mounting to boom.
- Equipped with lighting, control panel, and phosphorous warning strips.
Bearings and Shafts
- Bronze GSn Bz 10 bearings with lubrication slots.
- Shafts manufactured from Ck 45 material with precision tolerances.
Retaining Legs
- Four hydraulic legs for static and dynamic balance.
- Box-type construction with high-strength St 52.3 sheet feet.
- Hydro-mechanical controls with lock valves.
Booms
- Telescopic design for heights 14–20 m.
- High-strength steel with Delrin bearings.
- Load capacity: 7 tons lateral, basket 200–250 kg.
Hydraulic & Electrical System
Hydraulic System
- DIN-standard high-strength pistons with advanced sealing.
- Pressure-controlled hydraulic lines and valves.
- Hand pump for emergency lowering.
- Pilot-controlled over-center valves for hose-burst safety.
Electrical System
- Joystick-operated proportional hydraulic controls.
- Emergency stop, signal lamps, and warning lights included.
- IP65-rated electrical insulation.
